Specifications

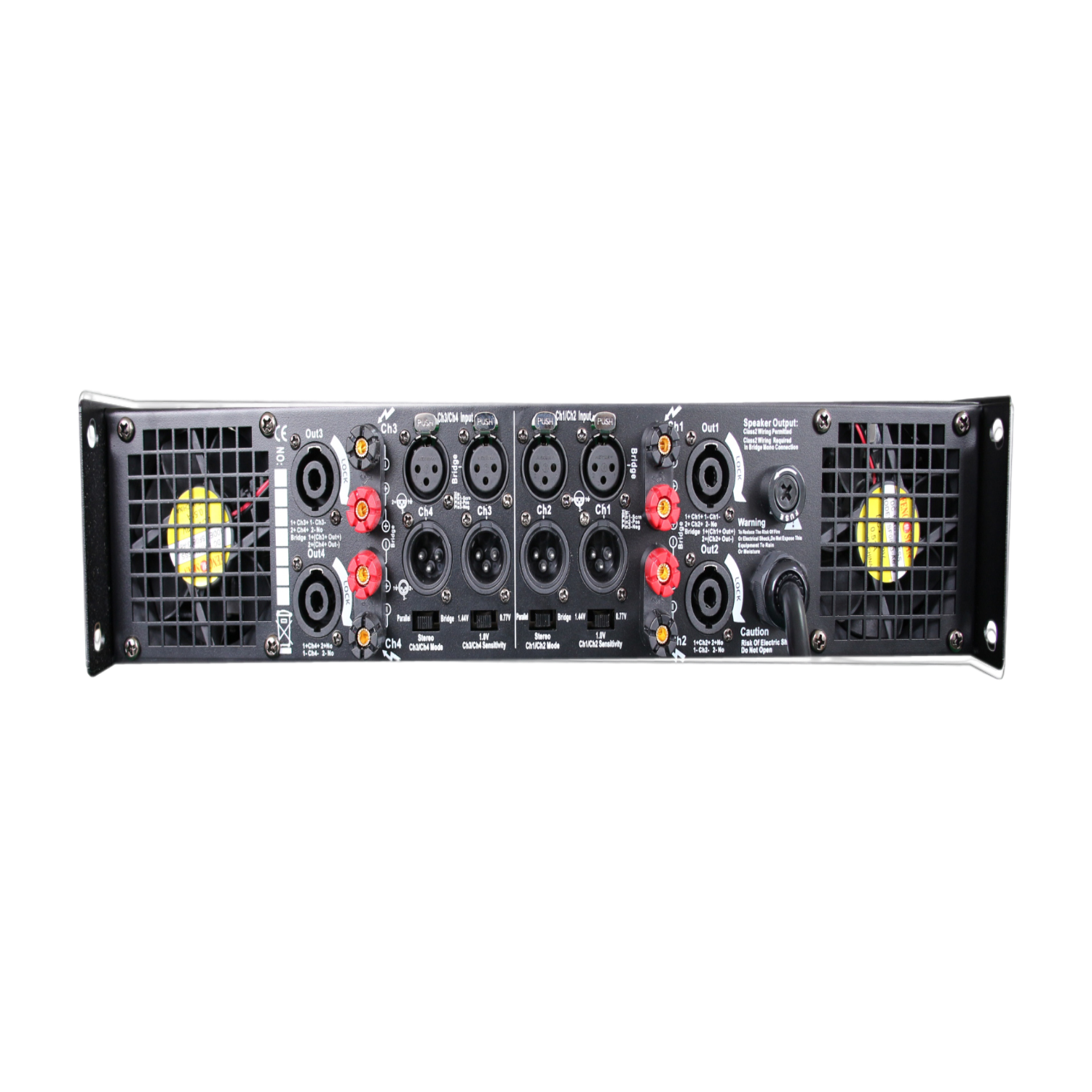

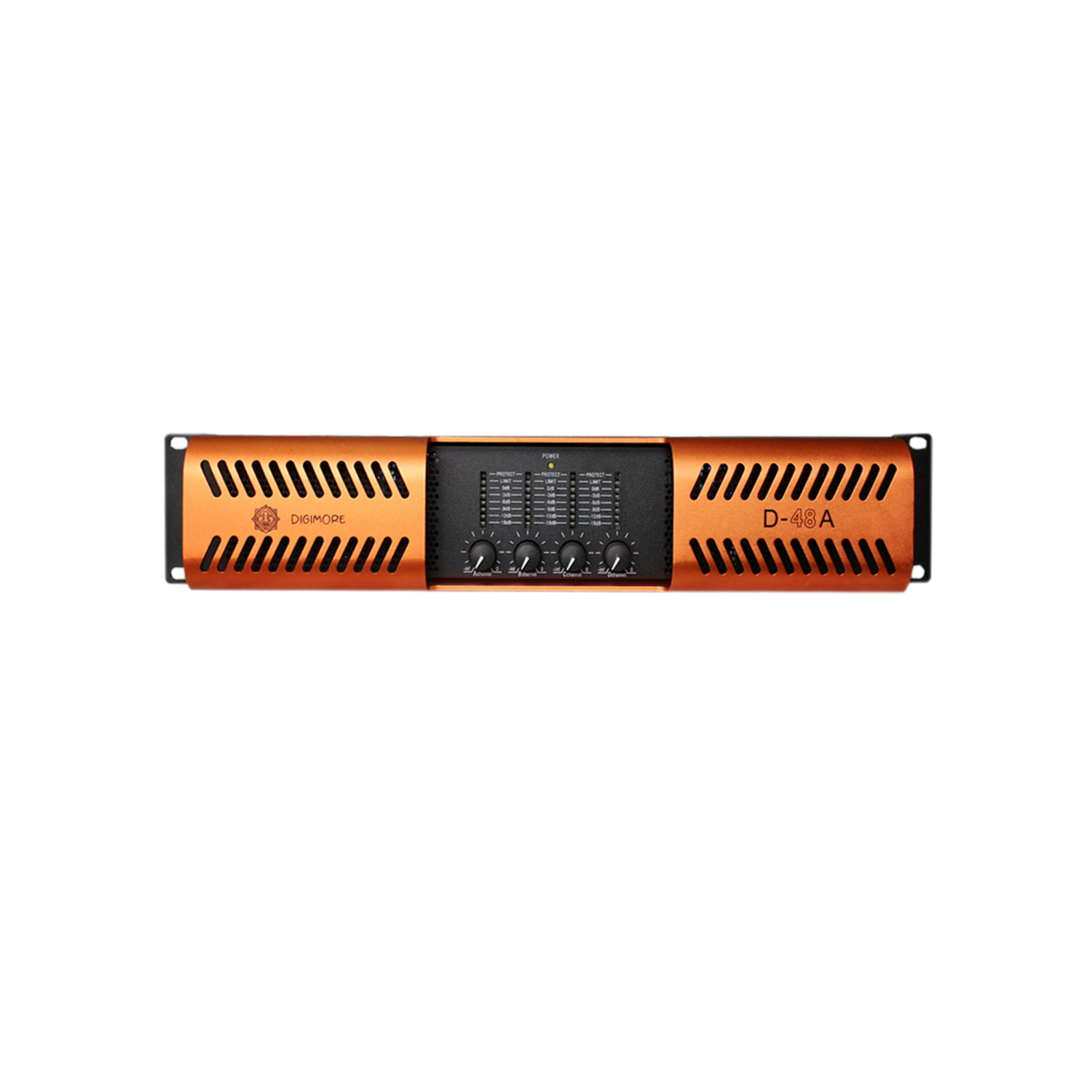

Model DIGIMORE D-48A
Channel 4
Body Size 2U
Power Output (8Ω) 800 W × 4 CH
Power Output (4Ω) 1200 W × 4 CH
Bridge Power (8Ω) 1500 W × 2 CH
Bridge Power (4Ω) 2700 W × 2 CH
Input Impedance 20 KΩ (Bal) / 10 KΩ (Unbal)
Output Circuitry Class-H
Damping Factor ≥ 600
Frequency Range 5 Hz – 50 kHz (±0.5 dB)
Input Sensitivity 0.775 V / 1 V / 2 V
S/N Ratio > 102 dB
THD + N < 0.05% @ 8Ω 1 kHz
Cooling 4 Temp-Controlled Fans
Protection Overheat, Short, DC, Limit, Soft-Start, Relay, Clip
